Emptying FIBC bags becomes Faster, Easier, Safer and more Accurate with DynamoFlow Jumbo Juinior+.
DynaFlow Jumbo Junior+
Useful In Following Industries
Chemical
Fertilizer
Grains
Pigments
Construction
Plastics
Biomass Pellets
Pharma
Food
Seeds
Sugar
Waste Material
Refractories
Recycle
DynaFlow Jumbo Junior+
HOW TO USE ?
FIBC WITHOUT DISCHARGE SPOUT

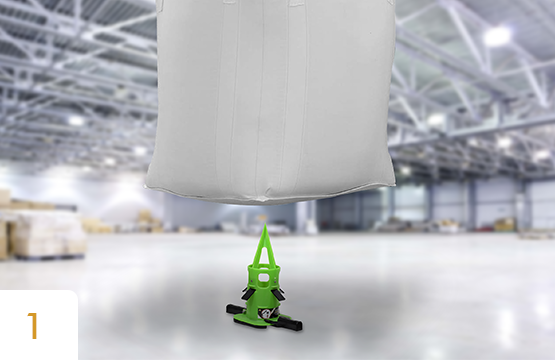

Place Jumbo Junior+ on a flat surface. Lift the jumbo bag & bring above the Jumbo Junior+ at convenient location.

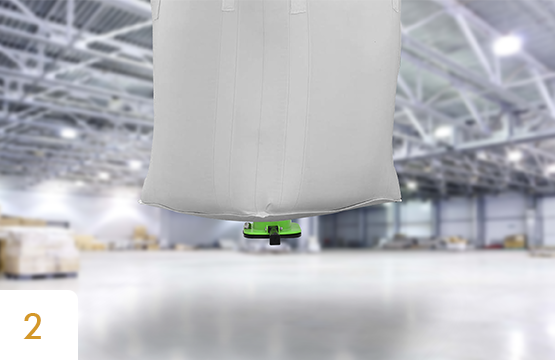

Lower the jumbo bag onto the Jumbo Junior+, It will penetrate the jumbo bag completely. Then raise the bag again.

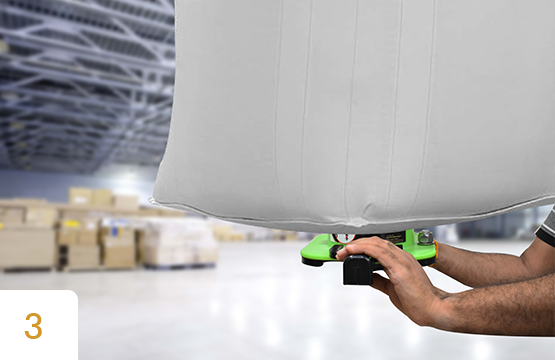

Pull down the Jumbo Junior+ slightly with rotating motion so that it locks inside the jumbo bag.

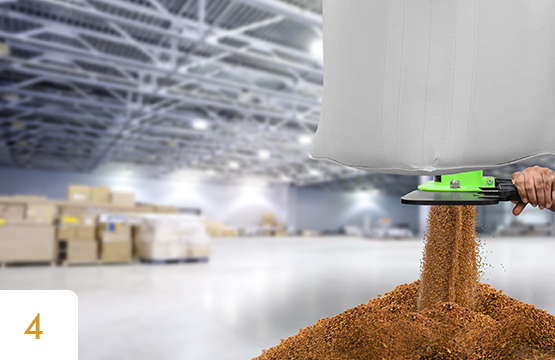

Jumbo Junior+ is ready to operate. Open and close the valve to avail desired flow of material.
FIBC WITH DISCHARGE SPOUT

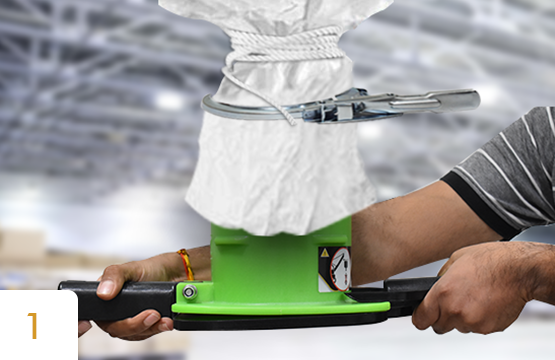

Free the discharge spout by unlocking the first knot and insert Jumbo Junior+ from the bottom.

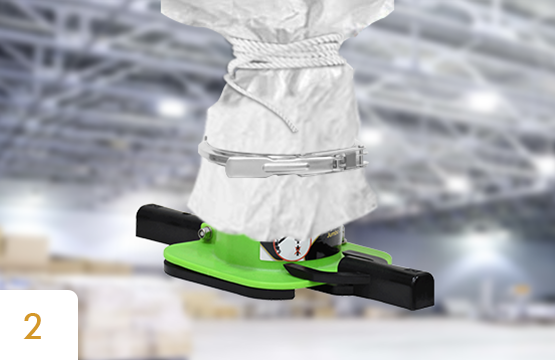

Place and Lock the Metal clamp on the Jumbo Junior+so that it overlaps and sits on the wedges.

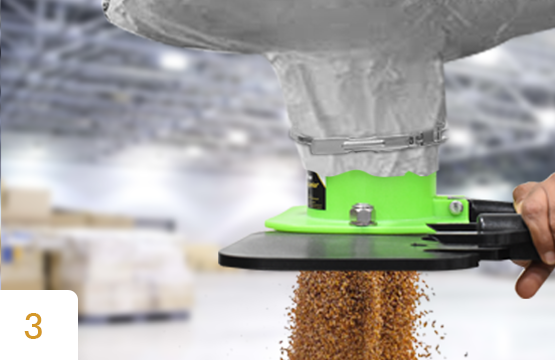

Fabric of discharge spout is perfectly fixed between the clamp and Jumbo Junior+ open the second knot to allow material in the Dispenser. Operate the valve to avail desired flow of material.
DynaFlow Jumbo Junior+
Video Gallery

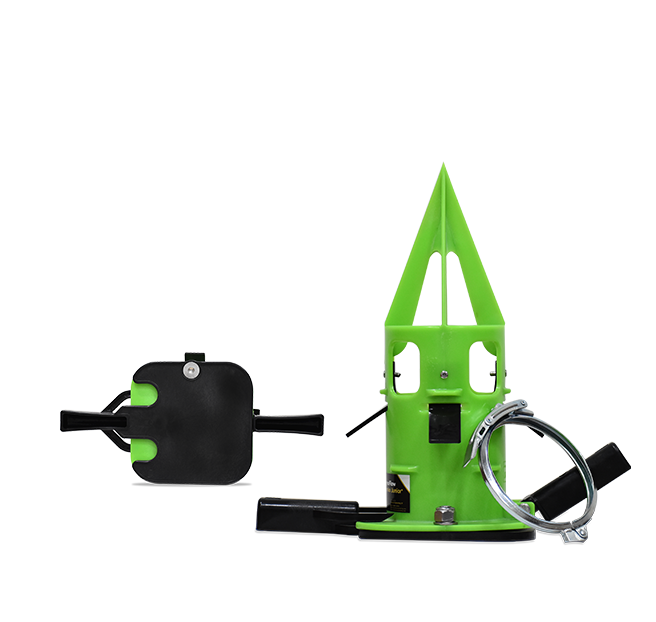

DynaFlow Jumbo Junior+
| Body material | Engineering plastic |
|---|---|
| Fastener material | Stainless Steel |
| Avg. material flow | 150 to 650 kg / minute (Depending on density) |
| Dimensions | 45 cm X 22 cm X 22 cm |
| Weight | 2020 g |
| Country of origin | India |

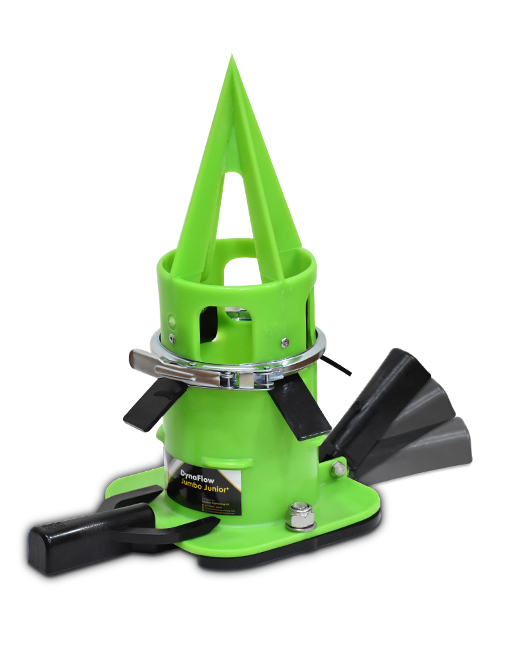

Product Highlights
Reinforced sharp tip for easy penetration of FIBC Bag.
Flexible handle with ergonomic design.

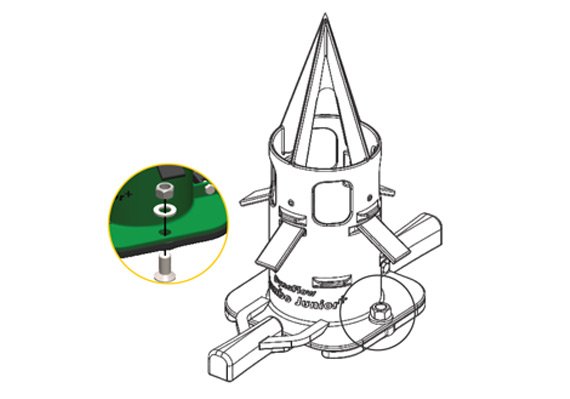

Rugged hardware for strength and stability.
Precisely shaped wedges for locking clamp to provide maximum grip with fabric of unloading spout.
Zinc cladded clamp with easy lock for attachment with unloading spout.
